heavy-duty antenna tracking system

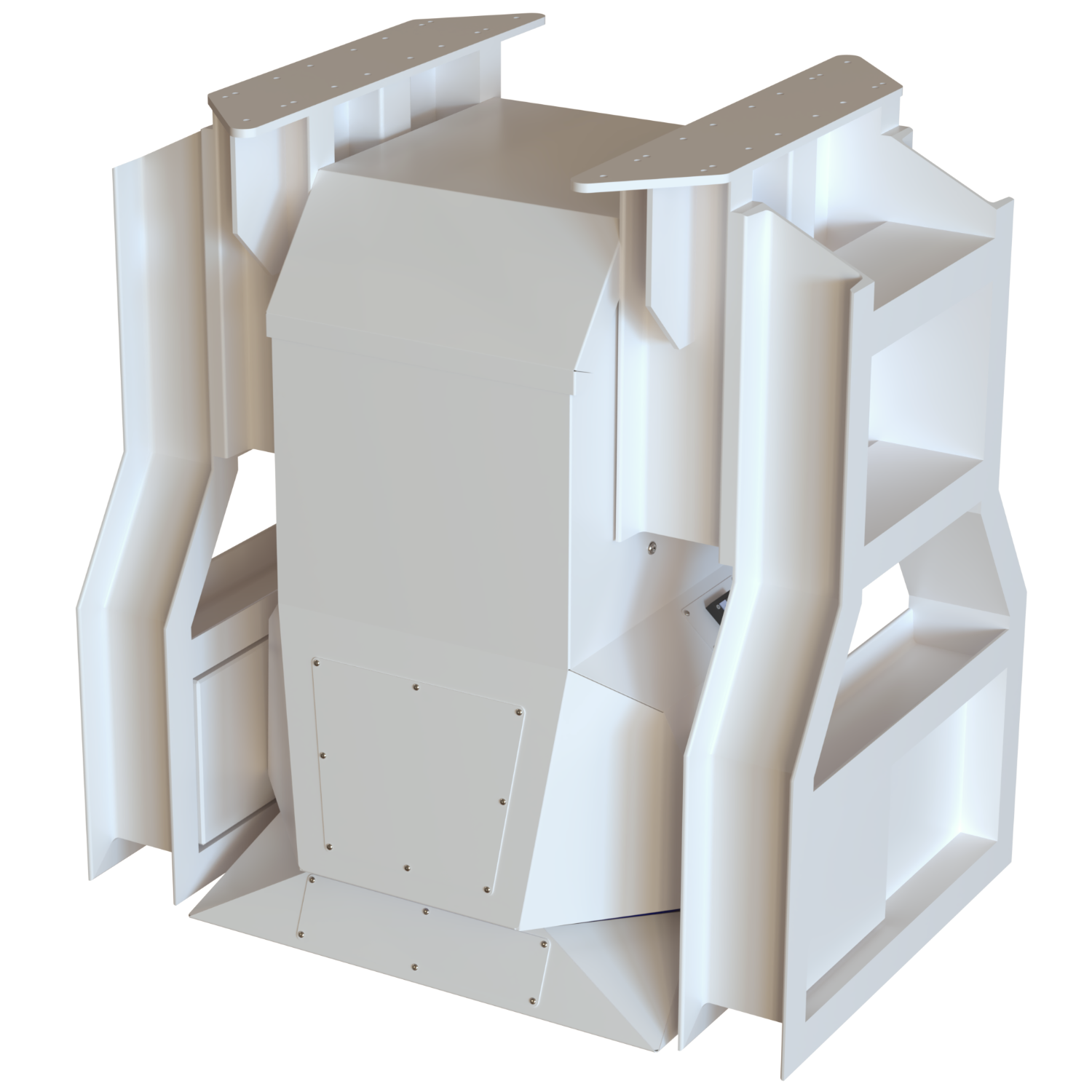

GS-800II is a heavy-duty antenna tracking system designed for demanding space communication applications, supporting antennas up to 800 kg in weight. Engineered for permanent outdoor installation, GS-800II combines high load capacity, precise tracking performance and fast slewing speeds, making it suitable also for tracking fast-moving satellites and spacecraft in Earth orbit. The alt-azimuth mechanical architecture, high-torque drive systems and encoders on both axes ensure accurate pointing, reliable tracking and long-term operational stability, even under severe environmental conditions. GS-800II is the ideal solution for large-aperture ground station antennas requiring high precision, robustness and continuous remote operation.
The GS-800II features a large-scale, heavy-duty mechanical structure, reflecting its ability to support very high loads and large-aperture antennas. Its overall dimensions are the result of a design focused on stability, stiffness and precise motion control under significant mechanical stress. It provides the necessary leverage, rigidity and safety margins required for accurate tracking, high torque transmission and long-term outdoor operation with large antennas installed.
It can also be used with the optional Wind Sensor for INTREPID, which automatically parks the antenna in the stow position (pointing to zenith) when wind speed exceeds the configured safety limits. In this condition, the antenna is moved to the position that offers the lowest wind resistance, ensuring safe operation and protecting the system from excessive mechanical stress.

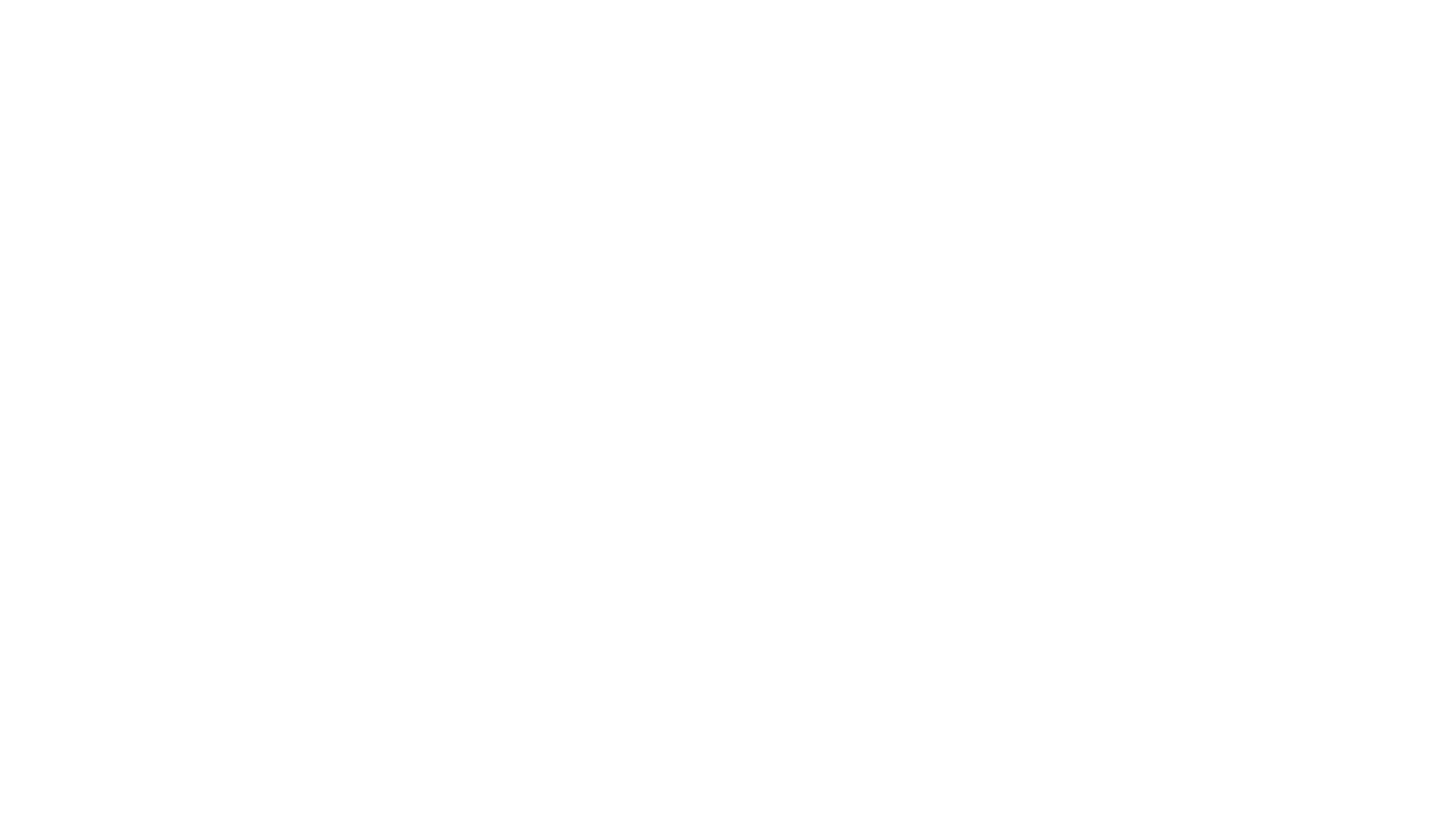

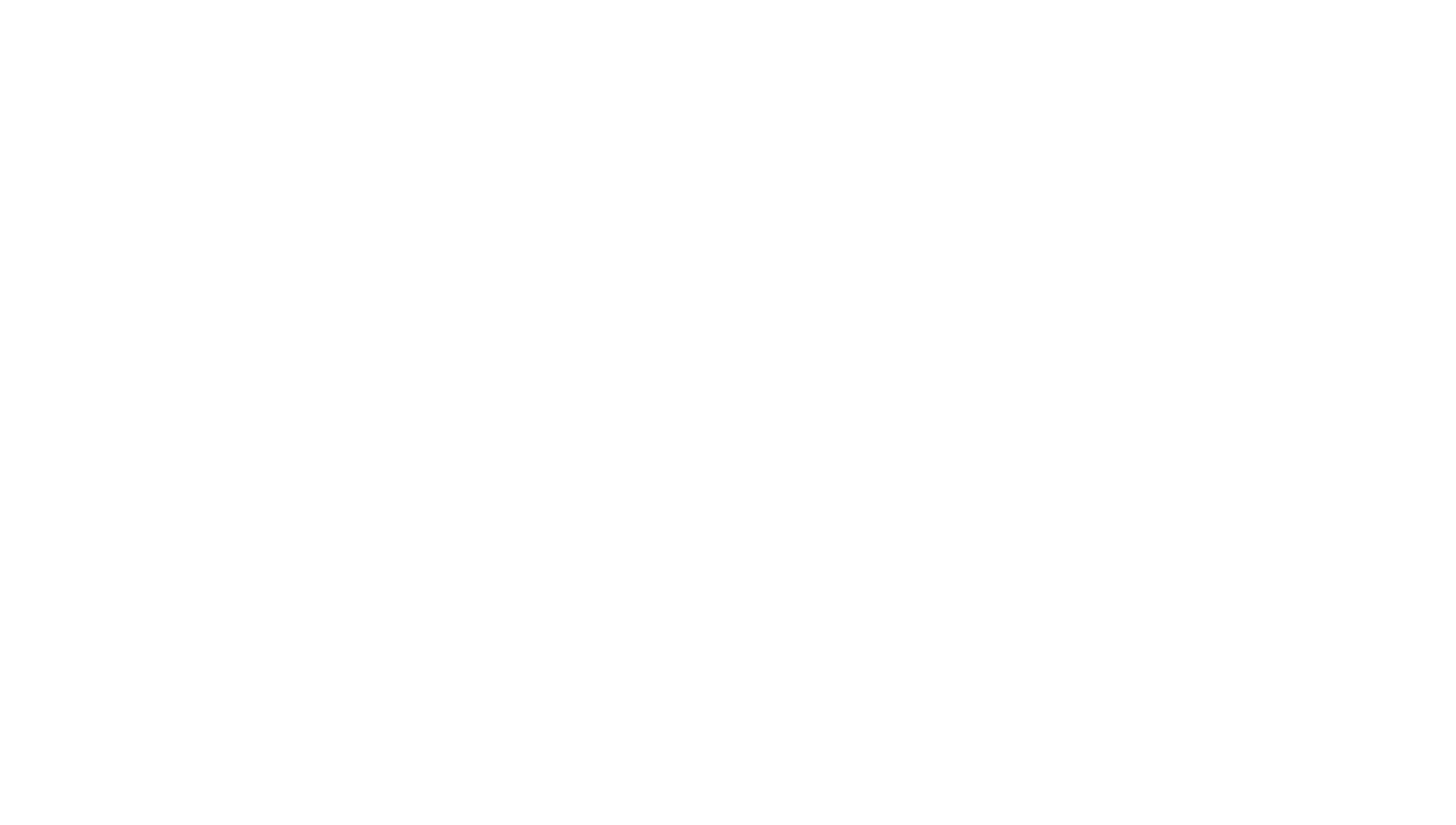

GS-800II heavy-duty antenna tracking system: specifications
| Type: | alt-az antenna tracking system |
| Load capacity: | 800 kg |
| Weatherproof: | yes |
| Azimuth movement: | 0-360° |
| Elevation movement: | 0-90° |
| Azimuth max Velocity: | 15 deg/s |
| Azimuth max Acceleration: | 25 deg/s2 |
| Azimuth max Torque: | 13320 Nm |
| Azimuth max Travel: | 360±90° |
| Elevation max Velocity: | 12 deg/s |
| Elevation max Acceleration: | 25 deg/s2 |
| Elevation max Torque: | 26610 Nm |
| Minimum Tracking Elevation: | 0° |
| Brake Holding Torque: | ~30000 Nm |
| Encoders read resolution: | 0,00002° |
| Operating Altitude: | 3000m max, above 1000m derating of 1%/100m |
| Operating Temperature: | -25°C to +55°c (optional extended -40°C +55°C) |
| Max operational wind speed (with 5 meter diameter antenna): | 22 m/s |
| Survival wind speed (with 5 meter diameter antenna in stow position): | 55 m/s |
| Weight: | 1700 kg |
| Supply voltage: | 3~ 400/230 VAC ±10%, 50 Hz (3P+N+PE), TN-S |
| Emergency stop switch | |
