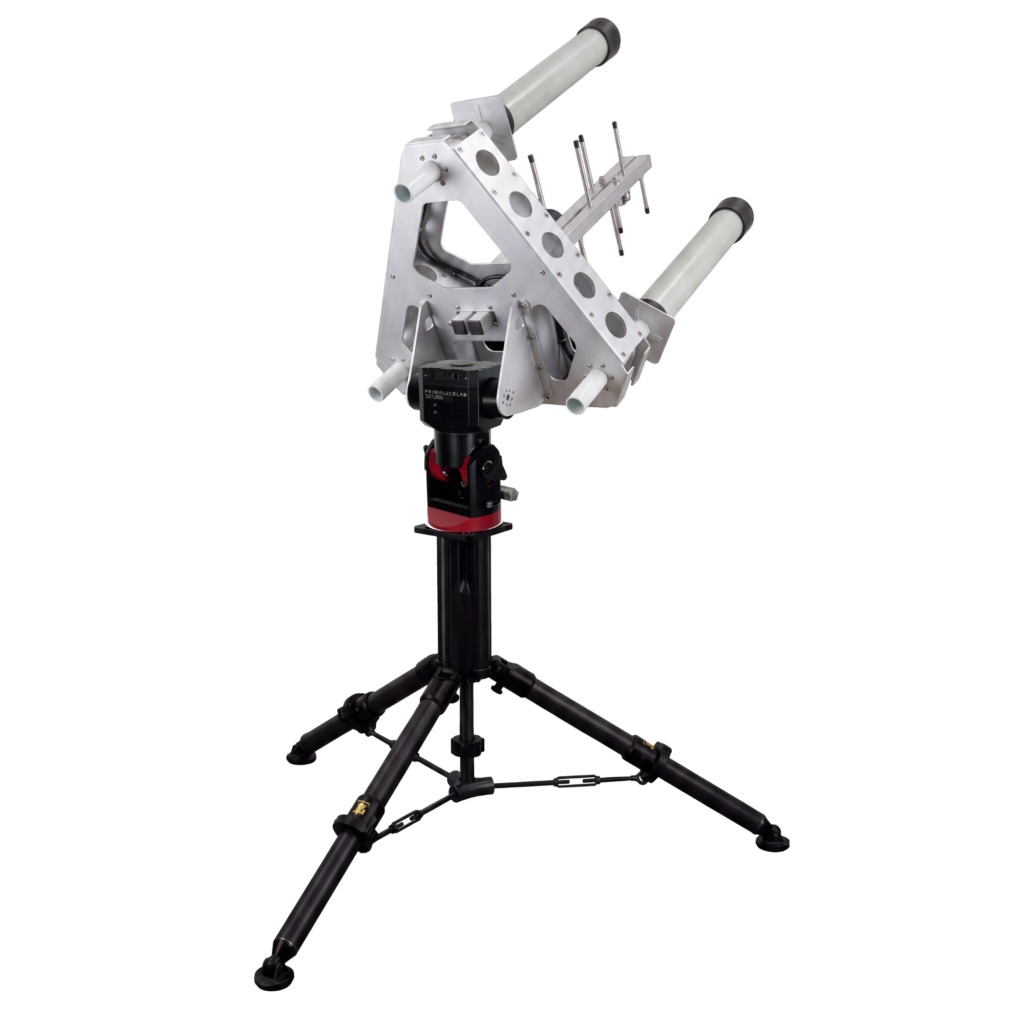

INTREPID QUAD-MF Portable 4-antenna ground station antenna system for multi-frequency operations
INTREPID QUAD-MF is a ground station antenna system for space communication in the field. Portable, compact, light. It mounts up to 4 antennas together on one dedicated bracket: VHF, UHF or SHF in Yagi, log-periodic, helical, or similar configuration; whatever the mission calls for. You provide the antennas, we build the bracket that holds them together, aligned and ready to track as one system. A special high-endurance field tripod keeps everything stable and ready anywhere. Built on PL-GSS, it tracks automatically from TLE data, and talks to your mission control software through open APIs. Not just a field antenna. A true flyaway terminal, intelligent by design, built for space, military and tactical missions.
产品详情
INTREPID QUAD-MF is the portable ground station antenna system built for multi-frequency operations in the field. Classic radio ground stations are heavy, single-band, slow to set up. A tactical or space mission on the move needs something different, fast deployment, more than one frequency at the same time, hardware that survives wind, dust, rough terrain.
主要特性
- Dedicated bracket for up to 4 customer-supplied antennas, (VHF, UHF or SHF in Yagi, log-periodic, helical, or similar configuration), mounted and aligned as one single, trackable payload. Antennas not included.
- SATURN HD-20 antenna tracking system, remotely controlled with a standard USB cable.
- High antenna slewing speed,
- 指向精度 0.05° 和 encoders 在两个轴上
- 空间同步对齐 方便的现场天线对准技术
- 基于自动跟踪 超时 (离线) 或 北方指挥部追踪系统编号 在线.
- 高级调度器 (符合SNAP命令行规范) 编程自动定向和跟踪目标，并带报告
- Special high-endurance field tripod wide wind-stable leg stance, quick-release lever joints for fast fold and deployment: designed for rapid, tool-free setup in the field, not for permanent installation.
- 可用 API开发者文档 集成到第三方控制软件中。.
- 基于 RESTful 的 API 命令 受保护的 加密 和 基于证书的身份验证
- 兼容可选 Radio2Space 控制软件
Dedicated bracket for up to 4 customer-supplied antennas, (VHF, UHF or SHF in Yagi, log-periodic, helical, or similar configuration), mounted and aligned as one single, trackable payload. Antennas not included.
SATURN HD-20 alt-az antenna tracking system, remotely controlled with a standard USB cable.
Special high-endurance field tripod, wide wind-stable leg stance, quick-release lever joints for fast fold and deployment: designed for rapid, tool-free setup in the field, not for permanent installation.
Multi-frequency by design: One bracket, up to four antennas
INTREPID QUAD-MF hosts up to 4 antennas at the same time, mounted on the motorized tracking system. UHF, VHF, Yagi, log-periodic, helical, whatever the mission calls for. The antennas themselves are not part of the system, you select and supply them according to your mission, your frequencies, your confidentiality requirements. We design and build the dedicated bracket that mounts up to 4 of them together, aligned as one rigid, trackable payload. One bracket, multiple frequencies, one operator.
Built for the field: Stable anywhere, fast everywhere
Under it, a special high-endurance field tripod, designed with a wide, wind-stable leg stance and quick-release joints, built to survive real field conditions, fast to fold, fast to deploy. Compact when packed, stable when open.
More than mechanics: The intelligence behind the bracket
Most flyaway and portable antennas on the market stop at mechanics, an antenna, a tripod, at best a basic pointing unit. INTREPID QUAD-MF is built on PL-GSS, the Prima Luce Ground Segment System, the same architecture behind every INTREPID station. SpaceSyncAlign gets the system aligned and ready in minutes, not hours. Automatic tracking runs on TLE and NORAD data, scheduled and repeatable, so a LEO pass is caught without a hand on the joystick. Open RESTful APIs connect INTREPID QUAD-MF directly to your mission control software, or to Radio2Space if you do not have one yet.
Ready to explore any mission: Land, deploy, track
A field team lands with INTREPID QUAD-MF and its own antennas. In a short time, the tripod is open, the bracket is mounted, four antennas are pointing at the sky, tracking a LEO pass across multiple frequencies at the same time, on its own. INTREPID QUAD-MF turns a multi-frequency ground segment into one transportable, intelligent object. Compact, light, ready to explore any mission, anywhere.
INTREPID 地面站天线系统：远不止是天线
INTREPID地面站天线系统是PrimaLuceLab工程团队多年研究的成果，我们公司内部设计、开发、组装和测试所有天线系统。通过这种方式，INTREPID地面站天线系统提供了标准现成天线无法比拟的性能，那些天线并非为空间通信而设计：跟踪和指向精度更好、灵敏度更高、工程质量更优，以及极佳的意大利设计！
由于我们在意大利的工厂生产 INTREPID 地面站天线系统，您可以直接与我们——真正的天线系统制造商——建立联系。我们的售前服务可以帮助您满足天线系统订单前的所有需求。我们的售后支持可以为您提供我们专门为我们的天线系统开发的软硬件产品的更新。我们内部训练有素的技术团队还能够在世界各地为您安装 INTREPID！
