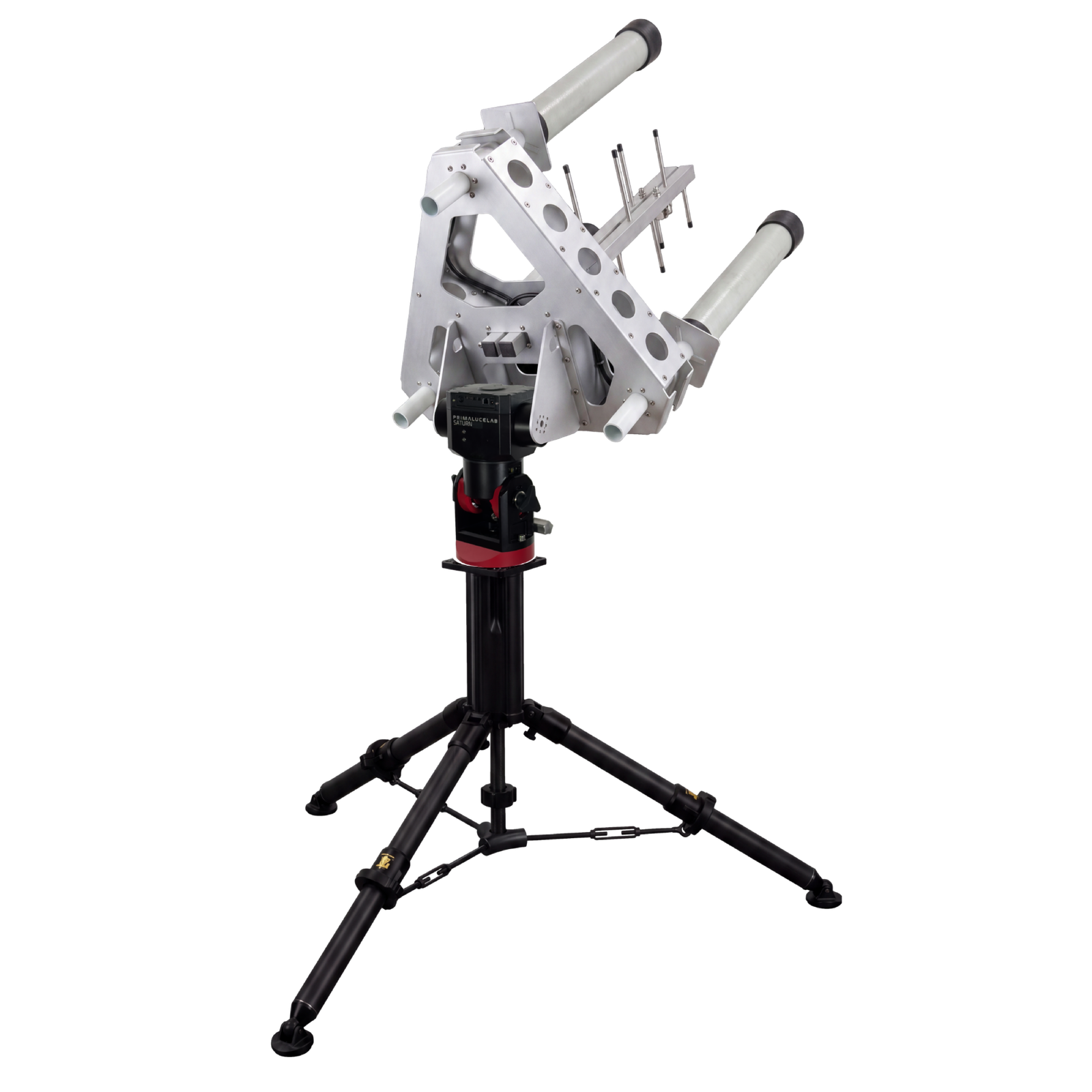

INTREPID QUAD-MF Portable 4-antenna ground station antenna system for multi-frequency operations
INTREPID QUAD-MF is a ground station antenna system for space communication in the field. Portable, compact, light. It mounts up to 4 antennas together on one dedicated bracket: VHF, UHF or SHF in Yagi, log-periodic, helical, or similar configuration; whatever the mission calls for. You provide the antennas, we build the bracket that holds them together, aligned and ready to track as one system. A special high-endurance field tripod keeps everything stable and ready anywhere. Built on PL-GSS, it tracks automatically from TLE data, and talks to your mission control software through open APIs. Not just a field antenna. A true flyaway terminal, intelligent by design, built for space, military and tactical missions.
Dettagli del prodotto
INTREPID QUAD-MF is the portable ground station antenna system built for multi-frequency operations in the field. Classic radio ground stations are heavy, single-band, slow to set up. A tactical or space mission on the move needs something different, fast deployment, more than one frequency at the same time, hardware that survives wind, dust, rough terrain.
Caratteristiche Principali
- Dedicated bracket for up to 4 customer-supplied antennas, (VHF, UHF or SHF in Yagi, log-periodic, helical, or similar configuration), mounted and aligned as one single, trackable payload. Antennas not included.
- SATURN HD-20 antenna tracking system, remotely controlled with a standard USB cable.
- High antenna slewing speed,
- Accuratezza di puntamento 0,05° con encoders su entrambi gli assi
- SpaceSyncAllinea tecnologia per allineare facilmente un'antenna in sito
- Tracciamento automatico basato su TLE (disconnesso) o ID NORAD (online).
- Pianificatore avanzato per programmare il puntamento e il tracciamento automatico di un oggetto con report
- Special high-endurance field tripod wide wind-stable leg stance, quick-release lever joints for fast fold and deployment: designed for rapid, tool-free setup in the field, not for permanent installation.
- Disponibile Documentazione per sviluppatori API da integrare in software di controllo di terze parti.
- Comandi API basati su RESTful protetto da crittografia con autenticazione basata su certificato
- Compatibile con opzionale Software di controllo Radio2Space
Dedicated bracket for up to 4 customer-supplied antennas, (VHF, UHF or SHF in Yagi, log-periodic, helical, or similar configuration), mounted and aligned as one single, trackable payload. Antennas not included.
SATURN HD-20 alt-az antenna tracking system, remotely controlled with a standard USB cable.
Special high-endurance field tripod, wide wind-stable leg stance, quick-release lever joints for fast fold and deployment: designed for rapid, tool-free setup in the field, not for permanent installation.
Multi-frequency by design: One bracket, up to four antennas
INTREPID QUAD-MF hosts up to 4 antennas at the same time, mounted on the motorized tracking system. UHF, VHF, Yagi, log-periodic, helical, whatever the mission calls for. The antennas themselves are not part of the system, you select and supply them according to your mission, your frequencies, your confidentiality requirements. We design and build the dedicated bracket that mounts up to 4 of them together, aligned as one rigid, trackable payload. One bracket, multiple frequencies, one operator.
Built for the field: Stable anywhere, fast everywhere
Under it, a special high-endurance field tripod, designed with a wide, wind-stable leg stance and quick-release joints, built to survive real field conditions, fast to fold, fast to deploy. Compact when packed, stable when open.
More than mechanics: The intelligence behind the bracket
Most flyaway and portable antennas on the market stop at mechanics, an antenna, a tripod, at best a basic pointing unit. INTREPID QUAD-MF is built on PL-GSS, the Prima Luce Ground Segment System, the same architecture behind every INTREPID station. SpaceSyncAlign gets the system aligned and ready in minutes, not hours. Automatic tracking runs on TLE and NORAD data, scheduled and repeatable, so a LEO pass is caught without a hand on the joystick. Open RESTful APIs connect INTREPID QUAD-MF directly to your mission control software, or to Radio2Space if you do not have one yet.
Ready to explore any mission: Land, deploy, track
A field team lands with INTREPID QUAD-MF and its own antennas. In a short time, the tripod is open, the bracket is mounted, four antennas are pointing at the sky, tracking a LEO pass across multiple frequencies at the same time, on its own. INTREPID QUAD-MF turns a multi-frequency ground segment into one transportable, intelligent object. Compact, light, ready to explore any mission, anywhere.
Sistema di antenne a terra INTREPID: molto più di un'antenna
Il sistema di antenne per stazioni di terra INTREPID è il risultato di molti anni di ricerca da parte del team di ingegneri PrimaLuceLab che progetta, sviluppa, assembla e testa internamente tutti i nostri sistemi di antenne. In questo modo, il sistema di antenne per stazioni di terra INTREPID offre prestazioni impareggiabili rispetto alle antenne standard "off-the-shelf" non progettate per le comunicazioni spaziali: maggiore precisione di inseguimento e puntamento, maggiore sensibilità, migliore qualità ingegneristica ed eccellente design italiano!
Poiché creiamo sistemi di antenne per stazioni terrestri INTREPID nel nostro stabilimento in Italia, potete beneficiare del rapporto diretto con noi, che siamo i veri produttori di sistemi di antenne. Il nostro servizio di pre-vendita può aiutarvi in tutto ciò di cui potreste aver bisogno prima dell'ordine del vostro sistema di antenne. Il nostro supporto post-vendita può fornirvi aggiornamenti per prodotti hardware e software che sviluppiamo specificamente per i nostri sistemi di antenne. Il nostro team interno di tecnici qualificati è inoltre in grado di installare INTREPID presso la vostra sede, in tutto il mondo!
