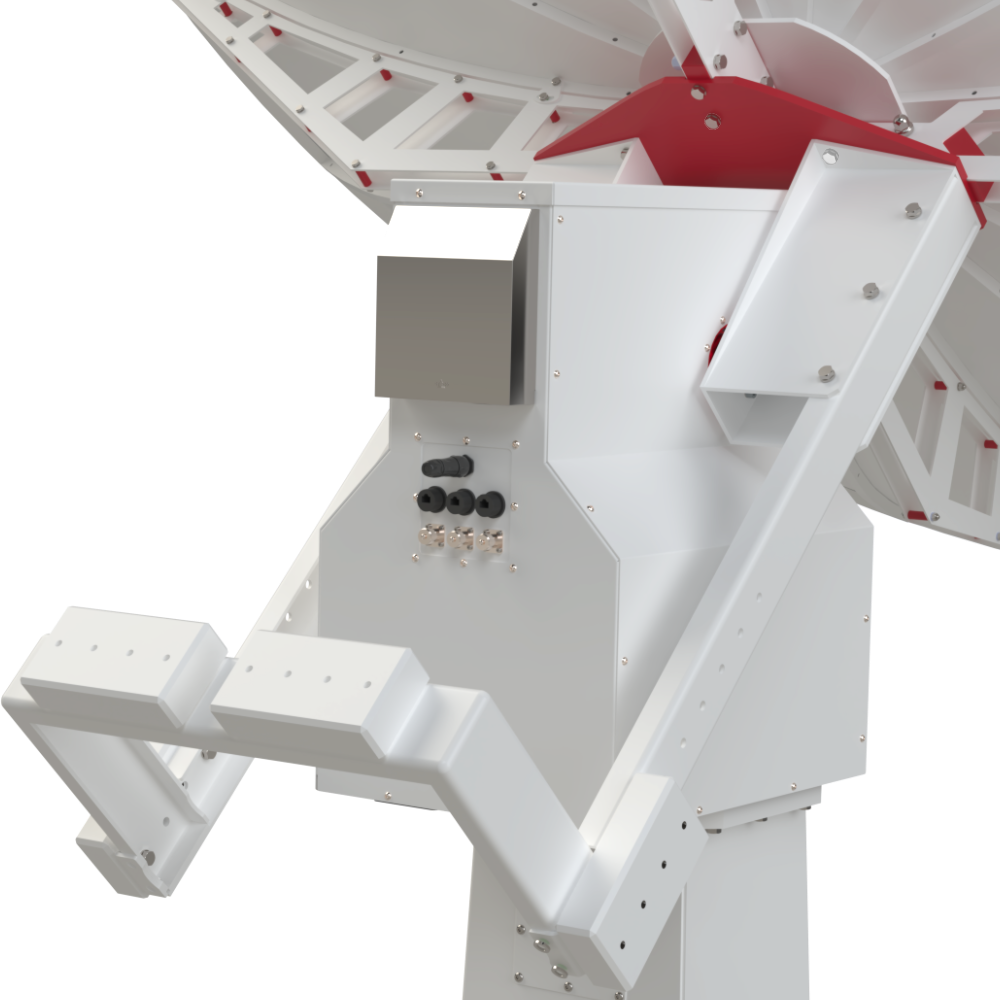

GS-100II compact antenna tracking system
GS-100II is a compact and affordable antenna tracking system designed for satellite communication applications, supporting antennas up to 100 kg in weight and 3 meters in diameter. It combines cost-effectiveness with high precision, offering pointing and tracking accuracy of 0.05° and slewing speeds of up to 6°/s per axis. Engineered for reliable operation even in demanding environmental conditions, GS-100II delivers professional performance in a compact format.
Equipped with automatic tracking and GoTo functionality, the GS-100II enables smooth, continuous and precise antenna movement. Its 100 kg load capacity and high tracking accuracy make it suitable for a wide range of satellite communication applications. The system can also be integrated with the optional Wind Sensor for SPIDER MarkII and INTREPID, which automatically parks the antenna in the stow position (pointing to zenith) when wind speeds exceed 50 km/h. In this configuration, the antenna moves to the position offering the lowest wind resistance, ensuring safe operation and system protection.
GS-100II compact antenna tracking system with 3 meter diameter parabolic antenna, installed on the optional C106-HEAVY-F pier with PEDESTAL.
GS-100II compact antenna tracking system: specifications
- Type: alt-az antenna tracking system
- Load capacity: 100 kg
- Weatherproof: yes
- Azimuth movement: 0-360°
- Elevation movement: 0-90°
- Stepper motors with encoders
- Pointing and tracking accuracy: 0,05°
- Encoders resolution: 0,0015°
- Max speed in each axis: 6°/sec
