C106-HEAVY-F pier with pedestal allows you to use INTREPID 300-5 ground station or GS-100II antenna tracking system without the need to be fixed on a concrete base, thanks to the specially designed legs. C106-HEAVY-F pier with legs weights 200 kg, it’s designed to allow operation of a 3 meter diameter parabolic antenna with winds up to 70km/h (with the antenna pointed into the wind).

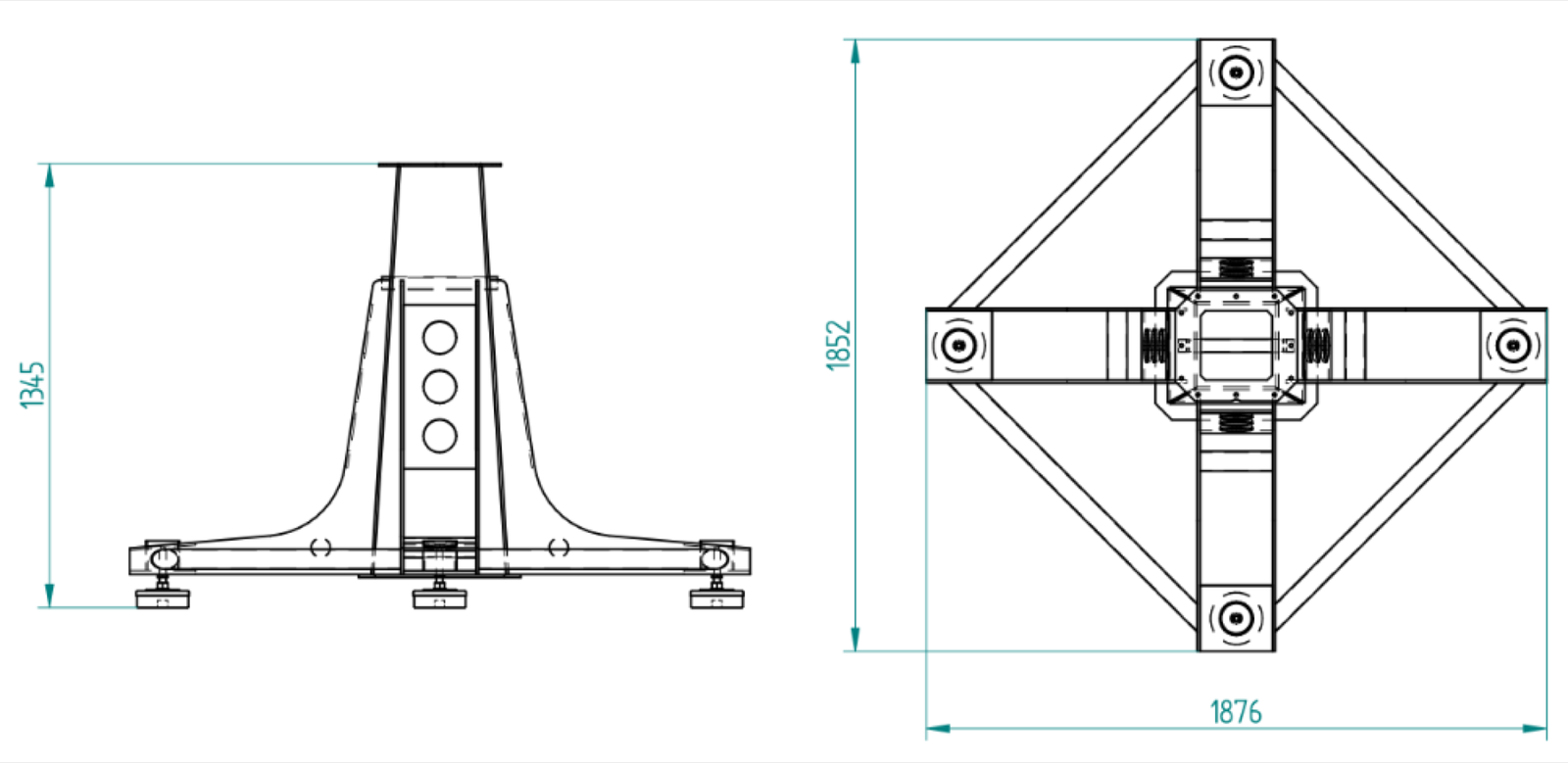

Dimensions in millimetres of the C106-HEAVY-F pier with pedestal
